Program:
clc;
clear all;
a = input('Enter the amplitude = ');
f = input('Enter the frequency = ');
n = input('Enter the N value = ');
t = 0:0.1:n;
x1 = stem(-t/3);
x2 = sin(2*pi*f*t);
y = x1.*x2;
subplot(3,1,1);
stem(x1);
title('Impulse Signal');
ylabel('Amplitude ---->');
xlabel('n ---->');
grid on;
subplot(3,1,2)
plot(t,x2);
title('Sine Wave');
xlabel('Time ----->');
ylabel('Amplitude ----->');
grid on;
subplot(3,1,3)
stem(t,y);
title('Pulse Modulated Wave');
xlabel('Time ----->');
ylabel('Amplitude ----->');
grid on;
Output:
Enter the amplitude = 5
Enter the frequency = 1
Enter the N value = 2
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
r = input('Enter the ripple value(in dBs) = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
if(rem(n,2)==0)
n = n+1;
end
y = chebwin(n,r);
% low-pass filter
b = fir1(n-1,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n-1,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n-1,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n-1,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.03
Enter the stopband ripple = 0.02
Enter the passband frequency = 1800
Enter the stopband frequency = 2400
Enter the sampling frequency = 10000
Enter the ripple value(in dBs) = 40
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
beta = input('Enter the beta value = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)~=0)
n1 = n;
n = n-1;
end
y = kaiser(n1,beta);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.02
Enter the stopband ripple = 0.01
Enter the passband frequency = 1000
Enter the stopband frequency = 1500
Enter the sampling frequency = 10000
Enter the beta value = 5.8
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)~=0)
n1 = n;
n = n-1;
end
y = hanning(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.03
Enter the stopband ripple = 0.01
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)==50)
n1 = n;
n = n-1;
end
y = hamming(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.02
Enter the stopband ripple = 0.01
Enter the passband frequency = 1200
Enter the stopband frequency = 1700
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)==50)
n1 = n;
n = n-1;
end
y = blackman(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.03
Enter the stopband ripple = 0.01
Enter the passband frequency = 2000
Enter the stopband frequency = 2500
Enter the sampling frequency = 7000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)==50)
n1 = n;
n = n-1;
end
y = bartlett(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.04
Enter the stopband ripple = 0.02
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
fp = input('Enter the passband frequency = ');
fs = input('Enter the stopband frequency = ');
f = input('Enter the sampling frequency = ');
wp = 2*fp/f;
ws = 2*fs/f;
num = -20*log10(sqrt(rp*rs))-13;
dem = 14.6*(fs-fp)/f;
n = ceil(num/dem);
n1 = n+1;
if (rem(n,2)==50)
n1 = n;
n = n-1;
end
y = boxcar(n1);
% low-pass filter
b = fir1(n,wp,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,1);
plot(o/pi,m);
title('Magnitude Response of LPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% high-pass filter
b = fir1(n,wp,'high',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,2);
plot(o/pi,m);
title('Magnitude Response of HPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band pass filter
wn = [wp ws];
b = fir1(n,wn,y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,3);
plot(o/pi,m);
title('Magnitude Response of BPF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
% band stop filter
b = fir1(n,wn,'stop',y);
[h,o] = freqz(b,1,256);
m = 20*log10(abs(h));
subplot(2,2,4);
plot(o/pi,m);
title('Magnitude Response of BSF');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
Output:
Enter the passband ripple = 0.05
Enter the stopband ripple = 0.04
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb2ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby2(n,rs,wn,'stop');
w = 0:0.1/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.3
Enter the stopband ripple = 46
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb2ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby2(n,rs,wn,'bandpass');
w = 0:0.01/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.4
Enter the stopband ripple = 40
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb2ord(w1,w2,rp,rs);
[b,a] = cheby2(n,rs,wn,'high');
w = 0:0.01/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.25
Enter the stopband ripple = 40
Enter the passband frequency = 1400
Enter the stopband frequency = 1800
Enter the sampling frequency = 7000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb2ord(w1,w2,rp,rs);
[b,a] = cheby2(n,rs,wn);
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.35
Enter the stopband ripple = 35
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'stop');
w = 0:0.1/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.25
Enter the stopband ripple = 40
Enter the passband frequency = 2500
Enter the stopband frequency = 2750
Enter the sampling frequency = 7000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'bandpass');
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.4
Enter the stopband ripple = 35
Enter the passband frequency = 2000
Enter the stopband frequency = 2500
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb1ord(w1,w2,rp,rs);
[b,a] = cheby1(n,rp,wn,'high');
w = 0:0.01/pi:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.3
Enter the stopband ripple = 60
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb1ord(w1,w2,rp,rs);
[b,a] = cheby1(n,rp,wn);
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.2
Enter the stopband ripple = 45
Enter the passband frequency = 1300
Enter the stopband frequency = 1500
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = buttord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = butter(n,wn,'stop');
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.4
Enter the stopband ripple = 46
Enter the passband frequency = 1100
Enter the stopband frequency = 2200
Enter the sampling frequency = 6000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = buttord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = butter(n,wn,'bandpass');
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.3
Enter the stopband ripple = 40
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = buttord(w1,w2,rp,rs);
[b,a] = butter(n,wn,'high');
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.5
Enter the stopband ripple = 50
Enter the passband frequency = 1200
Enter the stopband frequency = 2400
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = buttord(w1,w2,rp,rs);
[b,a] = butter(n,wn);
w = 0:0.01:pi;
[h,om] = freqz(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.5
Enter the stopband ripple = 50
Enter the passband frequency = 1200
Enter the stopband frequency = 2400
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb2ord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = cheby2(n,rs,wn,'stop','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.25
Enter the stopband ripple = 30
Enter the passband frequency = 1300
Enter the stopband frequency = 2000
Enter the sampling frequency = 8000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb2ord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = cheby2(n,rs,wn,'bandpass','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.37
Enter the stopband ripple = 37
Enter the passband frequency = 3000
Enter the stopband frequency = 4000
Enter the sampling frequency = 9000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb2ord(w1,w2,rp,rs,'s');
[b,a] = cheby2(n,rs,wn,'high','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.34
Enter the stopband ripple = 34
Enter the passband frequency = 1400
Enter the stopband frequency = 1600
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb2ord(w1,w2,rp,rs,'s');
[b,a] = cheby2(n,rs,wn,'s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.4
Enter the stopband ripple = 50
Enter the passband frequency = 2000
Enter the stopband frequency = 2400
Enter the sampling frequency = 10000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'stop','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.15
Enter the stopband ripple = 30
Enter the passband frequency = 2000
Enter the stopband frequency = 2400
Enter the sampling frequency = 7000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = cheb1ord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = cheby1(n,rp,wn,'bandpass','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.3
Enter the stopband ripple = 40
Enter the passband frequency = 1400
Enter the stopband frequency = 2000
Enter the sampling frequency = 5000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb1ord(w1,w2,rp,rs,'s');
[b,a] = cheby1(n,rp,wn,'high','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.29
Enter the stopband ripple = 29
Enter the passband frequency = 900
Enter the stopband frequency = 1300
Enter the sampling frequency = 7500
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = cheb1ord(w1,w2,rp,rs,'s');
[b,a] = cheby1(n,rp,wn,'s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.23
Enter the stopband ripple = 47
Enter the passband frequency = 1300
Enter the stopband frequency = 1550
Enter the sampling frequency = 7800
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = buttord(w1,w2,rp,rs,'s');
wn = [w1 w2];
[b,a] = butter(n,wn,'stop','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
title('Magnitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised Frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.28
Enter the stopband ripple = 28
Enter the passband frequency = 1000
Enter the stopband frequency = 1400
Enter the sampling frequency = 5000

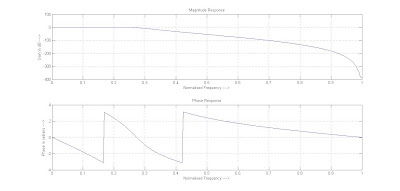

Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n] = buttord(w1,w2,rp,rs);
wn = [w1 w2];
[b,a] = butter(n,wn,'bandpass','s');
w = 0:.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
ylabel('Gain in dB ---->');
xlabel('Normalised Frequency ---->');
title('Magnitude Response');
grid on;
subplot(2,1,2);
plot(om/pi,an);
xlabel('Normalised Frequency ---->');
ylabel('Phase in Radians ---->');
title('Phase Response');
grid on;
Output:
Enter the passband ripple = 0.36
Enter the stopband ripple = 36
Enter the passband frequency = 1500
Enter the stopband frequency = 2000
Enter the sampling frequency = 6000
Waveform:
Program:
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = buttord(w1,w2,rp,rs,'s');
[b,a] = butter(n,wn,'high','s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
ylabel('Gain in dB ---->');
xlabel('Normalised frequency ---->');
title('Amplitude Response');
grid on;
subplot(2,1,2);
plot(om/pi,an);
xlabel('Normalised frequency ---->');
ylabel('Phase in radians ---->');
title('Phase Response');
grid on;
Output:
Enter the passband ripple = 0.2
Enter the stopband ripple = 40
Enter the passband frequency = 2000
Enter the stopband frequency = 3500
Enter the sampling frequency = 8000
Waveform:
Program
clc;
clear all;
rp = input('Enter the passband ripple = ');
rs = input('Enter the stopband ripple = ');
wp = input('Enter the passband frequency = ');
ws = input('Enter the stopband frequency = ');
fs = input('Enter the sampling frequency = ');
w1 = 2*wp/fs;
w2 = 2*ws/fs;
[n,wn] = buttord(w1,w2,rp,rs,'s');
[z,p,k] = butter(n,wn);
[b,a] = zp2tf(z,p,k);
[b,a] = butter(n,wn,'s');
w = 0:0.01:pi;
[h,om] = freqs(b,a,w);
m = 20*log10(abs(h));
an = angle(h);
subplot(2,1,1);
plot(om/pi,m);
title('Amplitude Response');
ylabel('Gain in dB ---->');
xlabel('Normalised frequency ---->');
grid on;
subplot(2,1,2);
plot(om/pi,an);
title('Phase Response');
xlabel('Normalised frequency ---->');
ylabel('Phase in radians ---->');
grid on;
Output:
Enter the passband ripple = 0.15
Enter the stopband ripple = 60
Enter the passband frequency = 1500
Enter the stopband frequency = 3000
Enter the sampling frequency = 7000
Waveform:
